Sheet for flat lamination and membrane pressed applications with antimicrobial protection
Introduction
KYDEX® XD MB is a thermoplastic 3D laminate giving designers the ability to incorporate compound corners, logos, and wire management holes while eliminating unsightly seams and the need for edgebanding typically associated with HPL/TFM surfaces. Its integral colour and superior impact resistance minimizes costly maintenance associated with other laminates. Antimicrobial protection is built-in to continuously fight the growth of microbes.
General
Information
Extreme durability (XD), superior impact, membrane pressable thermoplastic 3D laminate with integral color in 0.76mm-1.02mm (0.030”-0.040”) thickness. While providing good definition it surpasses vinyl overlays, high pressure laminates and melamine in resistance to surface and edge impact.
Suggested
Applications
- Store Fixtures
- Checkout Counters
- Exhibits and Displays
- Moldings
- Transaction Surfaces
- Workstations
- Logo and Trademark Panels
- Kiosks
- Cabinetry
- Door and Drawer Fascias
- Pedestals and Stands
- Gondolas
- Tabletops
- Flat Laminated Panels
Environmental
& Safety
Considerations
SEKISUI KYDEX®, LLC is committed to ensuring that its products can be manufactured, transported, stored, used, disposed and recycled with an appropriate regard for safety, health and environmental protection. We support the safe handling of our products. Please contact our Technical Service department at 800.682.8758 for resources or visit our website: http://www.kydex.com. For Material Safety Data Sheets, please call 800.325.3133.
FEATURES
- Tough and extremely durable
- Resistant to cracking and chipping
- Solid, integral colour
- 4,000+ custom colours
- Resistant to a wide range of chemicals
- Abrasion resistant

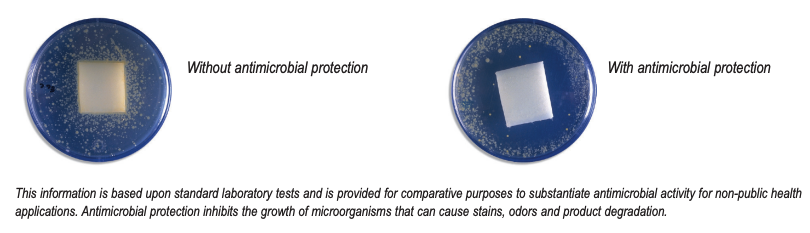

- Antimicrobial technology inhibits the growth of bacteria that can cause stains, odors and product deterioration
- Antimicrobial technology is built-in to the sheet so it won’t wash or wear away and lasts for the lifetime of the product/sheet
- Antimicrobial technology keeps the surface cleaner between cleanings
- Fire retardant
- Very low moisture absorption
- Membrane pressable
- Flexibility allows small radius bends
| Property | Test Method | Typical Value1 | |
|---|---|---|---|
| PHYSICAL | |||
| Specific Gravity | ASTM D792 | 1.35 | |
| Rockwell Hardness, R-scale | ASTM D785 | 94 | |
| MECHANICAL | |||
| Tensile Strength | ASTM D638 | 42 MPa | 6,100 psi |
| Tensile Modulus | ASTM D638 | 2,416 MPa | 351,000 psi |
| Elongation | ASTM D638 | 126% | |
| Flexural Strength | ASTM D790 | 66 MPa | 9,600 psi |
| Flexural Modulus | ASTM D790 | 2,480 MPa | 360,000 psi |
| Izod Impact, notched | ASTM D256 | 801 J/m | 15 ft-lb/inf |
| Abrasion Resistance2 | ASTM D1044 | 0.0095 | |
| Ball Impact Resistance3 | NEMA LD3 – 2005 | >3,000 | |
| Dart Impact Resistance3 | NEMA LD3 – 2005 | >1,000 | |
| Cleanability | NEMA LD3 – 2005 | 16 | |
| THERMAL | |||
| Heat Deflection Temperature (HDT) @ 264 psi (1.8 MPa) annealed | ASTM D648 | 75.6ºC | 168ºF |
| FLAMMABILITY | |||
| Steiner Tunnel Flame Spread/Smoke Development | ASTM E84 | Class 1/A | |
| Fire classification of Construction Products and Building Elements | EN 13501-1 | Class B, s2, d0 (0.76mm) Class C, s2, d0 (1.02mm) | |
| 1 Values based upon 3.18mm (0.125”) sheet unless otherwise specified. 2 Type CS10F wheel, 500gm load, weight loss (gms) per 1000 cycles. 3 Values based upon 1.02mm (0.040”) sheet. Not intended for specification purposes. | |||
