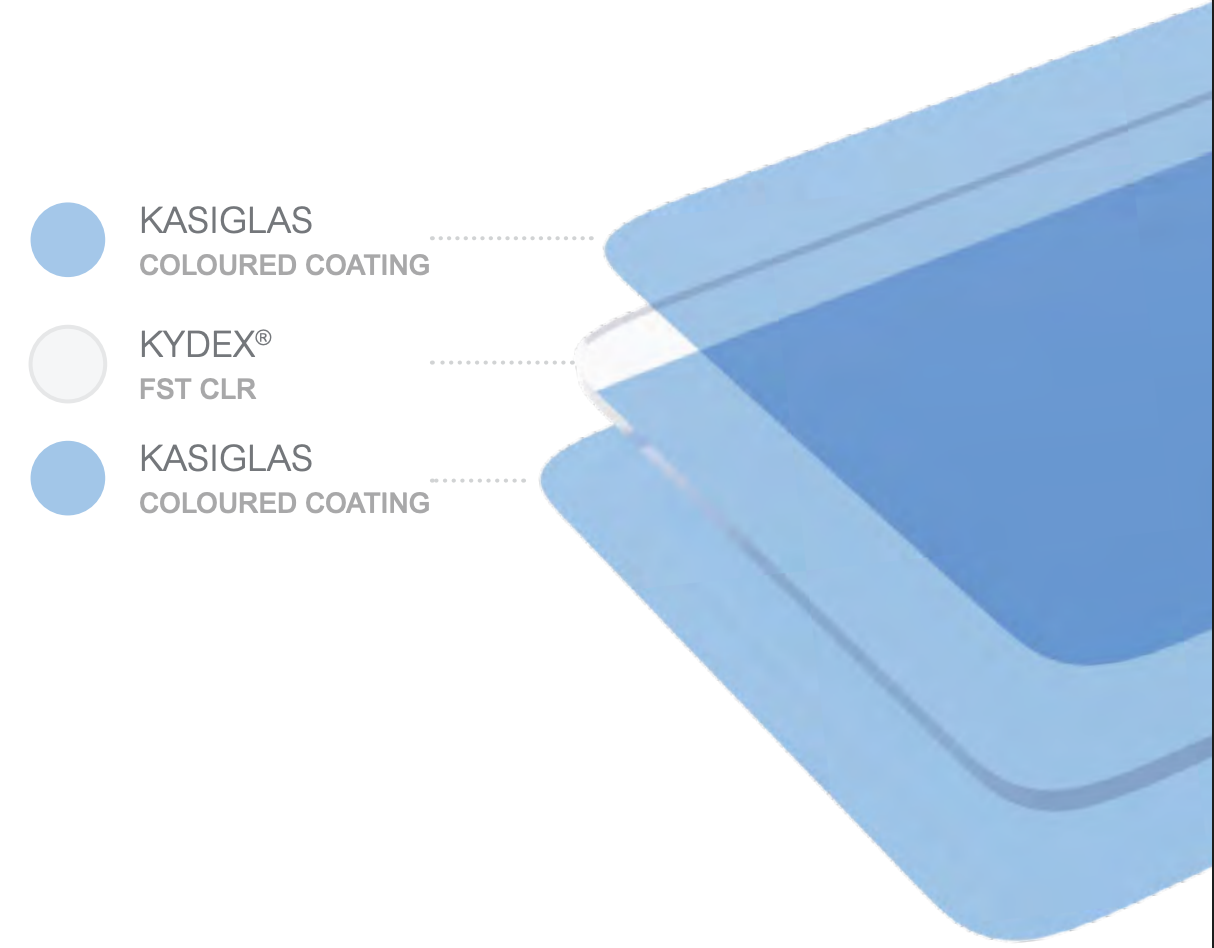

Introducing a new collaboration: KYDEX® FST CLR with KASIGLAS® PC Flex. The KASIGLAS® specially formulated coating over KYDEX® FST CLR provides resistance to abrasion, chemicals, and impact all while maintaining top optical quality.
- Abrasion resistant
- Shock & Impact resistant
- Chemical resistant
- Top optical quality
Physical Properties
Flammability and other requirements
Flammability
KASIGLAS® coating does not affect KYDEX® FST CLR material flammability
| VB After Flame | Drip Burn | Burn Length | Peak HR | Total HR | SD | |
|---|---|---|---|---|---|---|
| KYDEX® FST CLR 1.5mm | 0.9 | 0 | 1.4 | 8.4 | 3.2 | 8.7 |
| KYDEX® FST CLR 1.5mm + KASIGLAS® HC2 | 3 | 0 | 1.4 | 15.3 | 8.1 | 5.5 |
| KYDEX® FST CLR 2.0mm | 2.3 | 0 | 0.9 | 15.4 | 5.2 | 8.4 |
| KYDEX® FST CLR 2.0mm + KASIGLAS® HC2 | 0 | 0 | 1.3 | 17.9 | 7.6 | 16 |
| KYDEX® FST CLR 3.0mm | 0 | 0 | 1.1 | 34.4 | 13.5 | 9.3 |
| KYDEX® FST CLR 3.0mm + KASIGLAS® HC2 | 1.2 | 0 | 0.9 | 27.3 | 1.6 | 23 |
Chemical Stain Resistance
| Reagent | Resistant |
|---|---|
| Acetone, 100% | |
| Ammonia, 25% | |
| Acetic acid, 100% | |
| Butyl acetate, 100% | |
| Citric acid, 95% | |
| Dichloromethane, 100% | |
| Ethanol, 100% | |
| Ethyl acetate, 100% | |
| Formaldehyde, 37% | |
| Milling Oil, 100% | |
| Glass Cleaner, 100% | |
| Isopropanol, 100% |
| Reagent | Resistant |
|---|---|
| Potassium hydroxide, 40% | |
| Methyl ethyl ketone, 100% | |
| Sodium hydroxide, 40% | |
| Nitro thinner, 100% | |
| Phosphoric acid, 85% | |
| Nitric acid, 65% | |
| Hydrochloric acid, 32% | |
| Sulfuric acid, 98% | |
| Sulfuric acid, 85% | |
| Special benzine, 100% | |
| Toluene, 100% | |
| Water, 100% |
Fabrication
Mechanical and surface characteristics
MECHANICAL PROPERTIES
KASIGLAS® manufactures the final parts. Depending on the part geometry, it may require forming before coating or after coating. This is evaluated on a case-by-case basis and confirmed by KASIGLAS®.
Note: Coated sheets can be drape formed after coating.
DESIGN BEND RADIUS GUIDELINES
Smallest Bending Radius
1.5mm
2.0mm
3 mm 450 mm
4 mm 600 mm
5 mm 750 mm
6 mm 900 mm
8 mm 1.200 mm
10 mm 1.500 mm
12 mm 1.800 mm
Physical & Mechanical Properties
| Standard | KYDEX® FST CLR + KASI HC | |
|---|---|---|

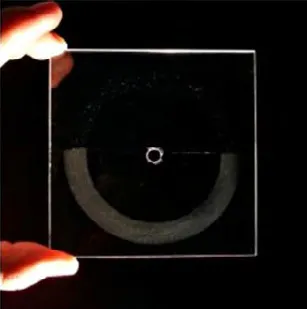

| Abrasion (Taber-process 500 rotations; CS-10F; 500g) | ISO 9352 | <= 8% Delta Haze |
| Thickness of Hard Coating Layer | 4-9 um | |
| Adhesive properties 0,5/1,0/2,0 h boiling period at 95°C | ISO 2409 | GT 0/0/0 |
Haze
| Delta Haze % AVG 100 Rev |
Delta Haze % AVG 500 Rev |
|
|---|---|---|
| KYDEX® FST CLR 1.5mm + KASIGLAS® HC | 3.1 | 4.7 |
Q&A
SUSTAINABILITY
Can KYDEX® FST CLR + Kasi HC2 be recycled?
Yes, there will not need to be a separate recycle stream for KYDEX® FST CLR with or
without the hard coating.
CUSTOMIZATION
Is KYDEX® FST CLR + Kasiglas® available in custom colour?
Yes, custom colour and finish options are available.
Infused Imaging™
Can Infused Imaging™ technology be incorporated after the material has been hard coated?
No.
